Product Overview TEXTILE WASTE RECYCLING MACHINIETextile waste recycling production line
This is a textile waste recycling production line, consist of
Opening Machine and cleaning machine. Opening machine and cleaning machine can match freely according to customer requirement. And this model production line with the cover to protect machine. In terms of machine, a comprehensive upgrade has been made and steel plate welding structure gas been adopted.

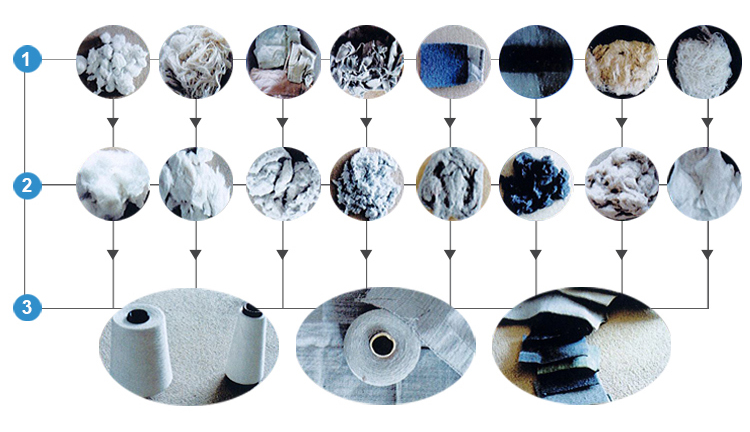

(1) Open cotton: loosen the compressed raw cotton into smaller cotton pieces or cotton bundles to facilitate the smooth progress of mixing and impurity removal; (2) Cotton cleaning: remove most of the impurities, defects and short fibers that are not suitable for spinning in raw cotton; (3) Cotton blending: The raw cotton of different components is fully and evenly mixed to facilitate the stability of cotton yarn quality; (4) Rolled: a cotton roll with a certain weight, length, uniform thickness and good shape.
FEATURES AT A GLANCE New type with cover. prolong service life.
High configuration. Automatic control. Gearbox with the inverter. PLC electric control cabinet, screen touch. Automatic alarm
system. Photoelectric induction. Fire protection system.
High output. According to customer's requirement. Customized machines to achieve the high capacity that customers nee
PRODUCT SPECIFICATIONS Main parameter:
Main parameters of GM600-2 Opening MachineOutput200~400kg/h(According to raw material)Diameter of rollers:600mmLicker-speed：1200r/minDiameter of dust cage：500mmMain motor:22kw(Brand: Delixi)Fan2.2kWDimension:2550*1500*1330mmWeight:1200kgs (Noteoutput and motorpower due to different raw material)
Main parameters of GM250-6 Cleaning MachineOutput200~400kg/h(According to raw material)Diameterof rollers:250mmLicker-speedfirst 2040r/min other2100r/MainDiameter of dust cage:500mmMain motor:48kw(Brand: Delixi)Fan:2.2kwDimension:6200*1500*1150mmWeight5200kgs(Note:output and motor power due to different raw material)
Company Profile
Exhibition
Certifications
Product Delivery
Associated Products
Contact us if you need more details on Textile Waste
Recycling Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cloth Waste Recycling Machine、Yarn Waste Recycling Machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Textile Waste Recycling Line > Six Roller Recycling Machine
